Designed by Francis Laurens for Aviation Design

Model	FALCON 7X
Scale	1/7
Span	3.80 m	150’’
Length	3.50 m	138’’
Weight with turbine	31 kg	69 lbs
Turbine	1 single turbine, 16 kg (36 lbs) to 18 kg (40 lbs) thrust AMT Pegasus, Jet Cat P160

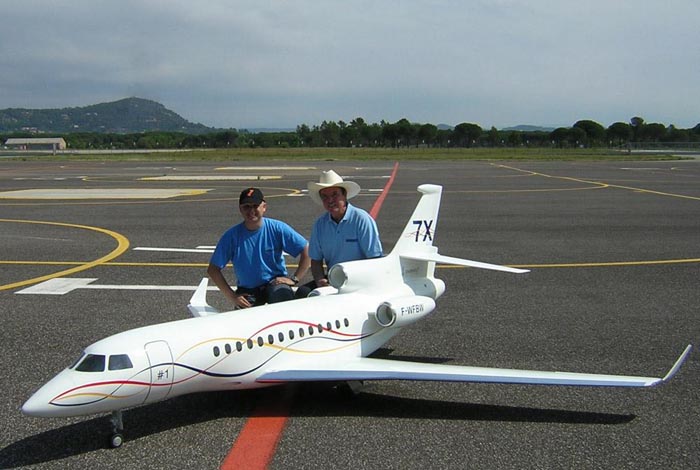

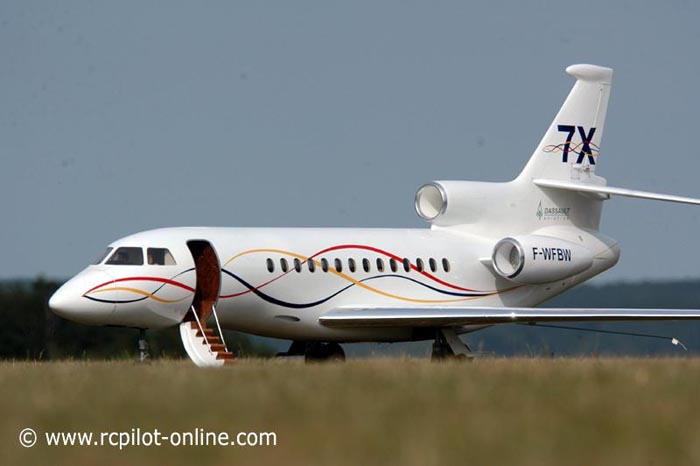

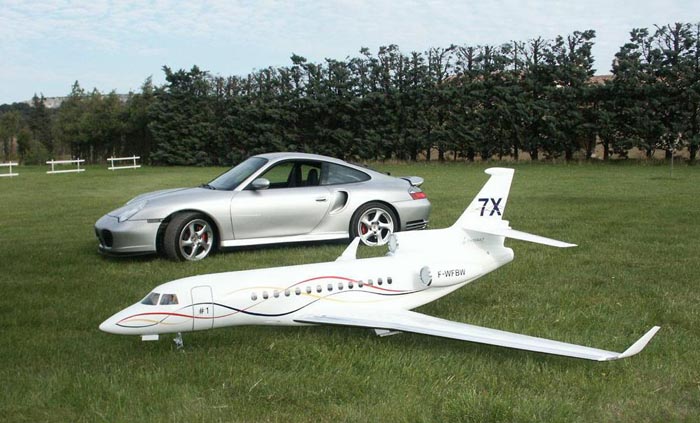

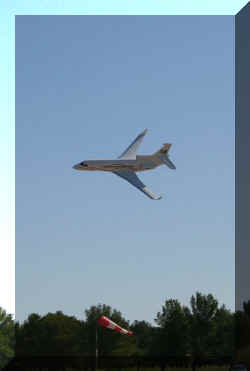

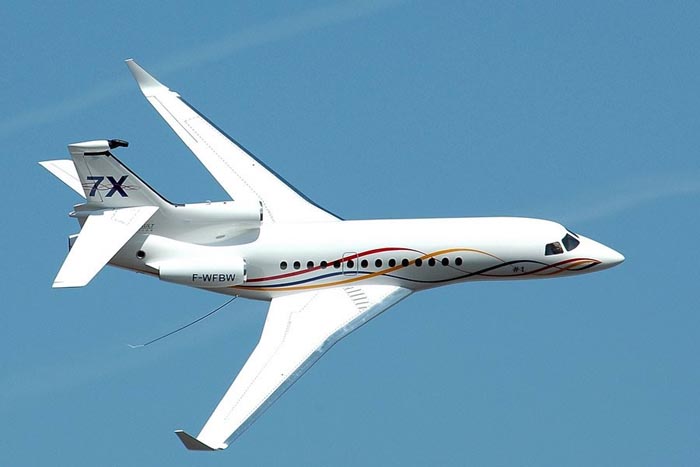

You like airliners or bizjets, you like large model, very large model, .... you will love our new Falcon 7X.

The Falcon 7 X is the new buisness jet from Dassault Aviation. It is the largest model from the french company with the long range capability.

The Aviation Design 1/7 scale Falcon 7X was designed by Francis Laurens, Dassault Aviation employee at Istres flying test center. Using Catia CAD drawings, Mr Laurens made a superb plug and toolings from the most beautiful bizjet from Dassault.
1/7 Scale was chosen to be similar to our fighter range (Rafale, Mirage2000, ...).

The real Falcon 7 X is a 3 turbine bizjet. Our model is only a single turbine powered model (central turbine with a S shape inlet ducting. It require only a 16 kg thrust turbine due to his low weight and low drag. So it is very simple to fit the turbine and simple to use.

Our landing gear have been designed for stronger field operation, with chock absorber struts, like real Falcon.

The Falcon 7X is produce as a basic kit version : We recommand a good builder experience to assemble and finish the Falcon 7X.

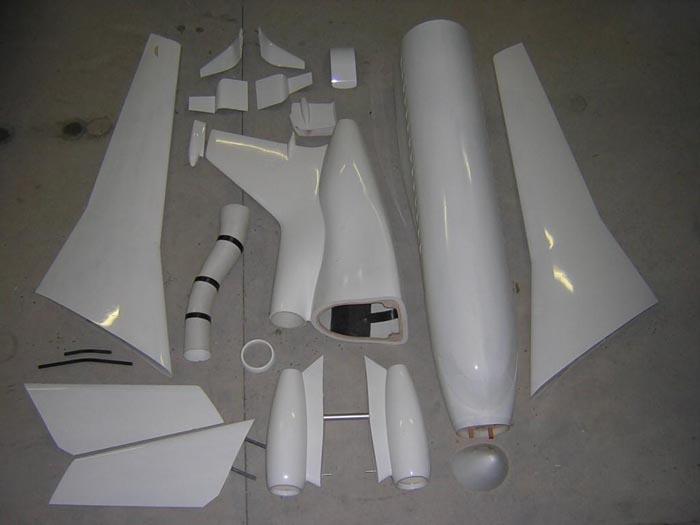

FALCON 7X kit includes :

· Fuselage included fin is molded in glassfiber / epoxy with carbon reinforcement in 2 pieces).

· Removable nose cone.

· Removable access door.

· 2 engine pod molded in epoxy with dummy engine. Aluminium spare fitted to remove them easily.

· 2 winglets molded in epoxy with aluminium pins fitted.

· 2 carbon gear doors.

· Epoxy central inlet for single turbine use.

· 2 Wings molded in epoxy under vaccum with carbon reinforcement, high quality plywood spare, aluminium tube and gear support fitted.

· 2 stabs molded in epoxy with carbon reinforcement, aluminium tube support fitted.

· 2 aluminium joining tubes for wings, 1 aluminium tube for engine pods and 2 bended carbon spars for stabs.

· All clear canopy CNC cutted.

· Hardware (screws, hatch latches, ....).

· Instructions in English.

Parts required to complete the model :

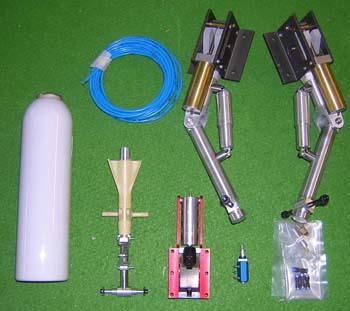

· Deluxe landing gear : complete 3 gears system with 3 scale oleo legs, all CNC machined. All valves and tubing supplied. Very high quality and strong, reliable for grass operation.

· Deluxe landing gear + electrovalve for gear.

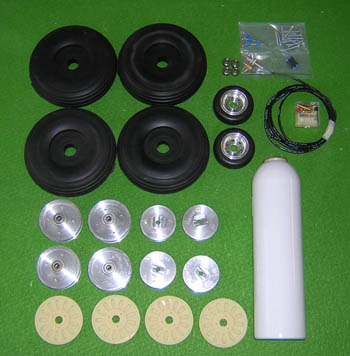

· Wheels set + brakes : 6 wheels with aluminium hub + bearings + 4 brakes + air control system.

· Wheels set + brakes + electrovalve.

· Gear doors set incl. air cylinders, air control system, gear door sequencer and door hinges.

· Gear doors set + electrovalve.

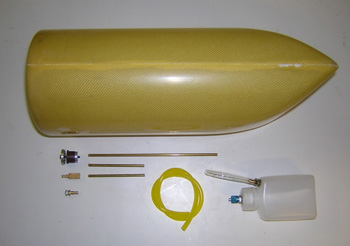

· Single kevlar fuel tanks (4.2 liters)(to be used if there is no cockpit interior).

· Single kevlar fuel tanks (4.2 liters) + BVM upper tank.

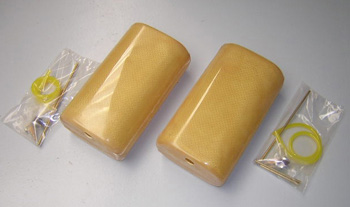

· 2 x 2 liters kevlar fuel cells (to be used if full cockpit and seat are fitted).

· 2 x 2 liters kevlar fuel cells + BVM upper tank.
